Applying MacSGP to the 10x Xenium CRC dataset¶
[2]:
import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import os
import warnings
warnings.filterwarnings("ignore")
os.environ["CUDA_VISIBLE_DEVICES"] = "1"
import sys
sys.path.append(r'/import/home2/share/yqzeng/MacSGP/codes')
import MacSGP
[2]:
RAW_PATH = "/home/yzengbj/data/colorectal_cancer" # Raw data
DATA_PATH = "/import/home2/share/yqzeng/MacSGP/data/CRC" # Raw data
os.makedirs(os.path.join(DATA_PATH), exist_ok = True)
Cell type deconvolution using MacSGP¶
[3]:
adata_ref = sc.read_10x_h5(os.path.join(RAW_PATH, 'sc', "HumanColonCancer_Flex_Multiplex_count_filtered_feature_bc_matrix.h5"))
meta = pd.read_csv(os.path.join(RAW_PATH, "HumanColonCancer_VisiumHD/MetaData/SingleCell_MetaData.csv"), index_col=0)
adata_ref.obs = meta.loc[adata_ref.obs.index]
adata_ref = adata_ref[adata_ref.obs["QCFilter"] == 'Keep', :]
[9]:
adata_st = sc.read_h5ad(os.path.join(DATA_PATH, "xenium_p2_crc.h5ad"))
adata_st.obsm['spatial'] = np.array([adata_st.obs['x'], adata_st.obs['y']]).T
[10]:
MacSGP.utils.Cal_Spatial_Net(adata_st, mode='KNN', k_cutoff=6)
Calculating spatial neighbor graph ...
The graph contains 2214760 edges, 326460 spots.
6.784169576670955 neighbors per spot on average.
[12]:
adata_st, adata_basis = MacSGP.utils.preprocess(adata_st,adata_ref,
celltype_ref_col = "Level2",
n_hvg_group = 150)
Finding highly variable genes...
407 highly variable genes selected.
Calculate basis for deconvolution...
Preprocess ST data...
[13]:
model = MacSGP.model.Model_deconv(adata_st, adata_basis, n_layers =4, training_steps=10000)
model.train(step_interval=1000, use_amp=False)
adata_st = model.eval()
0%| | 1/10000 [00:00<1:43:38, 1.61it/s]
Step: 0, Loss: 216.8512, d_loss: 213.2997, f_loss: 35.5146
10%|█ | 1001/10000 [06:51<1:01:44, 2.43it/s]
Step: 1000, Loss: 64.5341, d_loss: 62.1040, f_loss: 24.3014
20%|██ | 2001/10000 [13:42<54:50, 2.43it/s]
Step: 2000, Loss: 59.8627, d_loss: 57.4985, f_loss: 23.6416
30%|███ | 3001/10000 [20:33<48:02, 2.43it/s]
Step: 3000, Loss: 58.4121, d_loss: 56.0898, f_loss: 23.2228
40%|████ | 4001/10000 [27:24<41:09, 2.43it/s]
Step: 4000, Loss: 57.7609, d_loss: 55.4757, f_loss: 22.8520
50%|█████ | 5001/10000 [34:15<34:18, 2.43it/s]
Step: 5000, Loss: 57.4019, d_loss: 55.1460, f_loss: 22.5588
60%|██████ | 6001/10000 [41:06<27:26, 2.43it/s]
Step: 6000, Loss: 57.2084, d_loss: 54.9799, f_loss: 22.2857
70%|███████ | 7001/10000 [47:57<20:36, 2.43it/s]
Step: 7000, Loss: 57.0164, d_loss: 54.8167, f_loss: 21.9972
80%|████████ | 8001/10000 [54:48<13:42, 2.43it/s]
Step: 8000, Loss: 56.9264, d_loss: 54.7555, f_loss: 21.7086
90%|█████████ | 9001/10000 [1:01:39<06:51, 2.43it/s]
Step: 9000, Loss: 56.7884, d_loss: 54.6482, f_loss: 21.4019
100%|██████████| 10000/10000 [1:08:30<00:00, 2.43it/s]
[15]:
adata_st.write_h5ad(os.path.join(DATA_PATH, "xenium.h5ad"))
adata_basis.write_h5ad(os.path.join(DATA_PATH, "xenium_basis.h5ad"))
[18]:

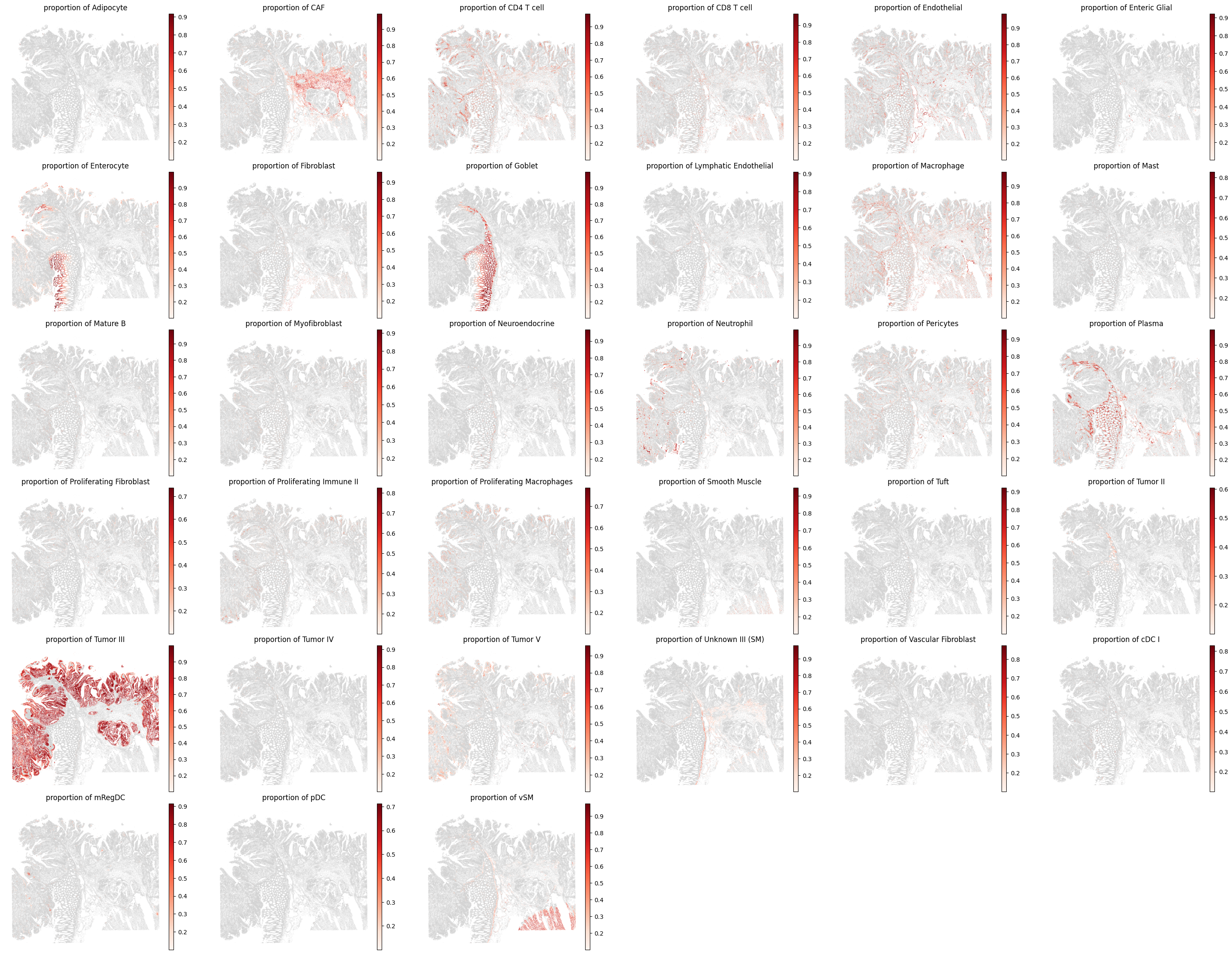

from MacSGP.vis import plot_spatial_ct
plot_spatial_ct(adata_st, index='proportion',
proportion_threshold=0.1, num_threshold=100,
cmap='Reds',
spot_size=10,
ncols=6)
Dropping cell types: ['Epithelial', 'Memory B', 'NK', 'SM Stress Response', 'Tumor I']
Applying MacSGP to detect cell-type-specific SGPs¶
[4]:
DATA_PATH = "/import/home2/share/yqzeng/MacSGP/data/CRC" # Raw data
SAVE_PATH = "/import/home2/share/yqzeng/MacSGP/results/CRC" # Deconvolution results
os.makedirs(os.path.join(SAVE_PATH), exist_ok = True)
[3]:
adata_st = ad.read_h5ad(os.path.join(DATA_PATH, "xenium.h5ad"))
adata_basis = ad.read_h5ad(os.path.join(DATA_PATH, "xenium_basis.h5ad"))
[4]:
filterd_ct = ['CAF', 'CD8 T cell', 'Endothelial', 'Enteric Glial', 'Enterocyte',
'Fibroblast', 'Goblet', 'Lymphatic Endothelial', 'Macrophage', 'Mast',
'Myofibroblast', 'Neuroendocrine', 'Neutrophil', 'Pericytes', 'Plasma',
'Proliferating Fibroblast', 'Proliferating Immune II',
'Proliferating Macrophages', 'Tuft', 'Tumor III', 'Tumor V', 'cDC I',
'mRegDC', 'vSM']
[5]:
adata_st.obsm['proportion'] = adata_st.obsm['proportion'][filterd_ct]
adata_basis = adata_basis[filterd_ct]
[ ]:
model = MacSGP.model.Model(adata_st, adata_basis, n_layers=3, training_steps=3000, coef_reg=0.06)
model.train(step_interval=200, test=False, gene_patch=True, patch_size=206, use_amp=True)
adata_result = model.eval()
0%| | 1/3000 [00:03<3:18:22, 3.97s/it]
Step: 0, Loss: 63.0689, d_loss: 59.5186, f_loss: 35.5019, reg_loss: 0.0000
7%|▋ | 201/3000 [02:41<38:03, 1.23it/s]
Step: 200, Loss: 56.5643, d_loss: 53.2687, f_loss: 26.2307, reg_loss: 0.2421
13%|█▎ | 401/3000 [05:27<35:26, 1.22it/s]
Step: 400, Loss: 53.4631, d_loss: 49.8114, f_loss: 25.6305, reg_loss: 0.3919
20%|██ | 601/3000 [08:13<32:41, 1.22it/s]
Step: 600, Loss: 52.0441, d_loss: 48.2661, f_loss: 25.3986, reg_loss: 0.4458
27%|██▋ | 801/3000 [10:59<32:11, 1.14it/s]
Step: 800, Loss: 51.2495, d_loss: 47.4112, f_loss: 25.2326, reg_loss: 0.4734
33%|███▎ | 1001/3000 [13:46<28:37, 1.16it/s]
Step: 1000, Loss: 50.7439, d_loss: 46.8607, f_loss: 25.0528, reg_loss: 0.4961
40%|████ | 1201/3000 [16:32<24:34, 1.22it/s]
Step: 1200, Loss: 50.4322, d_loss: 46.5251, f_loss: 24.9391, reg_loss: 0.5087
47%|████▋ | 1401/3000 [19:19<23:03, 1.16it/s]
Step: 1400, Loss: 50.1865, d_loss: 46.2457, f_loss: 24.8386, reg_loss: 0.5245
53%|█████▎ | 1601/3000 [22:10<20:31, 1.14it/s]
Step: 1600, Loss: 50.0480, d_loss: 46.0778, f_loss: 24.8198, reg_loss: 0.5357
60%|██████ | 1801/3000 [24:59<16:28, 1.21it/s]
Step: 1800, Loss: 49.9273, d_loss: 45.9359, f_loss: 24.6766, reg_loss: 0.5485
67%|██████▋ | 2001/3000 [27:45<13:38, 1.22it/s]
Step: 2000, Loss: 49.8393, d_loss: 45.7978, f_loss: 24.5882, reg_loss: 0.5698
73%|███████▎ | 2201/3000 [30:33<11:41, 1.14it/s]
Step: 2200, Loss: 49.7507, d_loss: 45.7050, f_loss: 24.3860, reg_loss: 0.5786
80%|████████ | 2401/3000 [33:19<08:12, 1.22it/s]
Step: 2400, Loss: 49.6991, d_loss: 45.6528, f_loss: 24.2842, reg_loss: 0.5825
87%|████████▋ | 2601/3000 [36:07<05:42, 1.16it/s]
Step: 2600, Loss: 49.6538, d_loss: 45.6020, f_loss: 24.1874, reg_loss: 0.5879
93%|█████████▎| 2801/3000 [38:54<02:44, 1.21it/s]
Step: 2800, Loss: 49.6235, d_loss: 45.5727, f_loss: 24.0999, reg_loss: 0.5907
100%|██████████| 3000/3000 [41:40<00:00, 1.20it/s]
[ ]:
adata_result.write_h5ad(os.path.join(SAVE_PATH, "xenium.h5ad"))
[5]:
adata_result = ad.read_h5ad(os.path.join(SAVE_PATH, "xenium.h5ad"))
[7]:

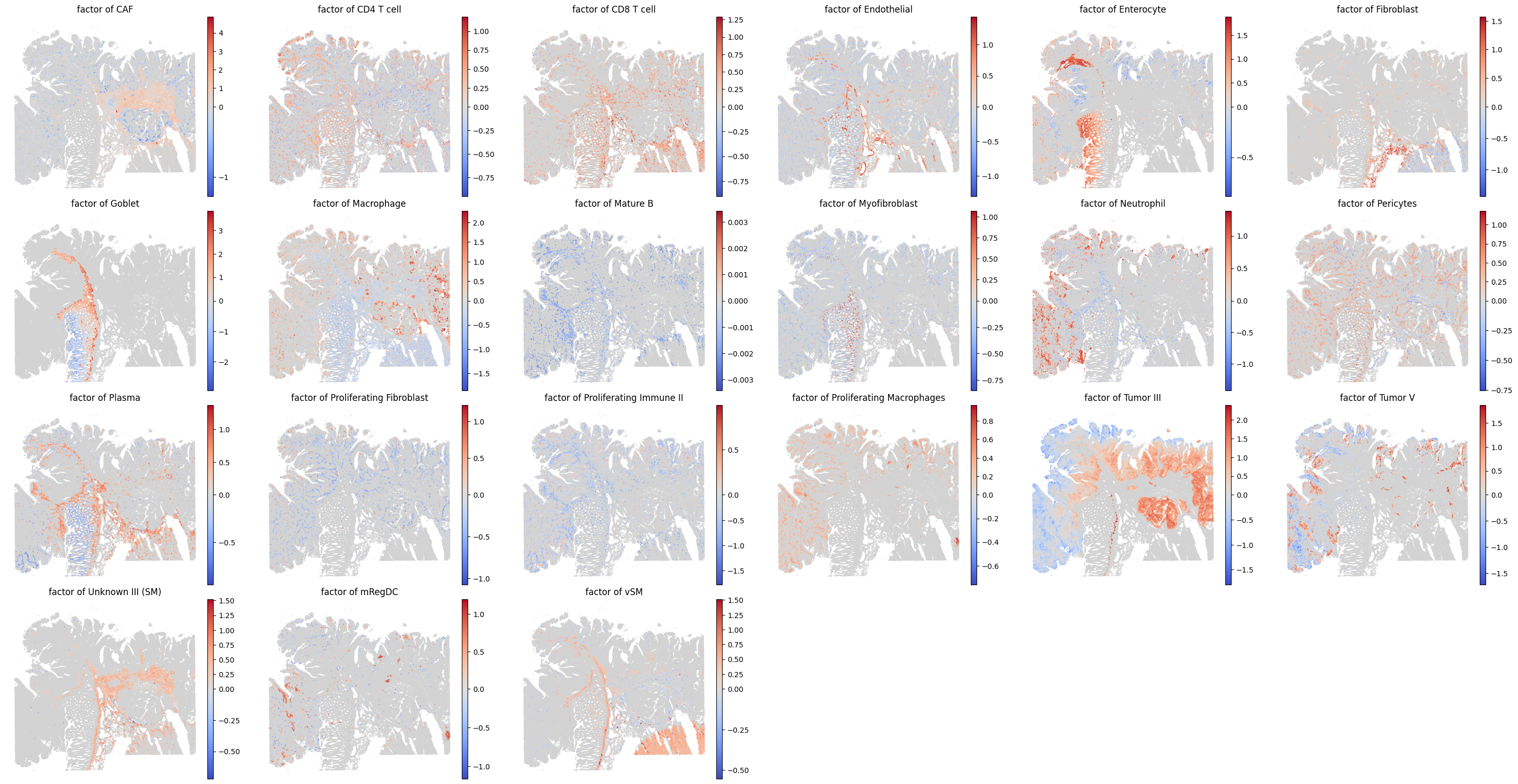

from MacSGP.vis import plot_spatial_ct
plot_spatial_ct(adata_result, index='factor', hide_image=True,
proportion_threshold=0.1, num_threshold=100,
cmap='coolwarm',
spot_size=30,
ncols=6)
Dropping cell types: []
